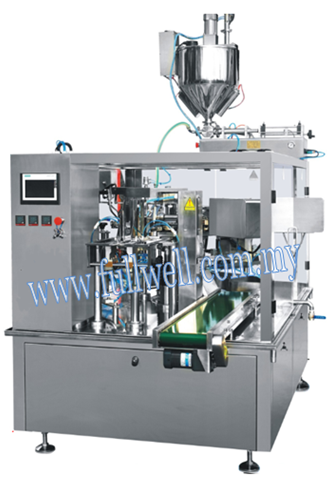

AUTOMATIC BAG GIVEN / ZIPPER POUCH PACKING MACHINE – CE-200D/ZC
APPLICATION:
- With intelligent weighing and packing system, accurate measurement.
- High speed, stable operation, low defective rate, low noise.
- Using #304 stainless steel material for food filling.
- All clamps can be adjusted by PLC system, no need to adjust each station manually when changing different size bags.
- Suitable for food industry, but also for medical, chemical, commodity, toys industries, wide range of application.
This product is already in quote request list.
Description
TECHNICAL PARAMETER:
| Model |
CE-200D/ZC |
| Brand |
FULLWELL |
| Packing speed |
16-50 bags/min
(Depends on packing material & bag type) |
| Packing bag size |
Bag width: 80-200mm
Bag length : 100-350mm |
| Packing weight |
30g-3000g (General range) |
| Air consumption |
≤0.6m³/min |
| Voltage |
415V, 3 Phase |
| Total power |
2.3kw |
| Dimension (LxWxH) |
4500 x 2820 x 3700mm |
| Gross weight |
2600kg (whole set) |
| Precision |
≤ ±1% |
